MC500

Parameters

Item	Unit	MC500
Travels
Distance from spindle end face to turntable surface	mm	50-600
Maximum rotation diameter of workpiece	mm	Φ490

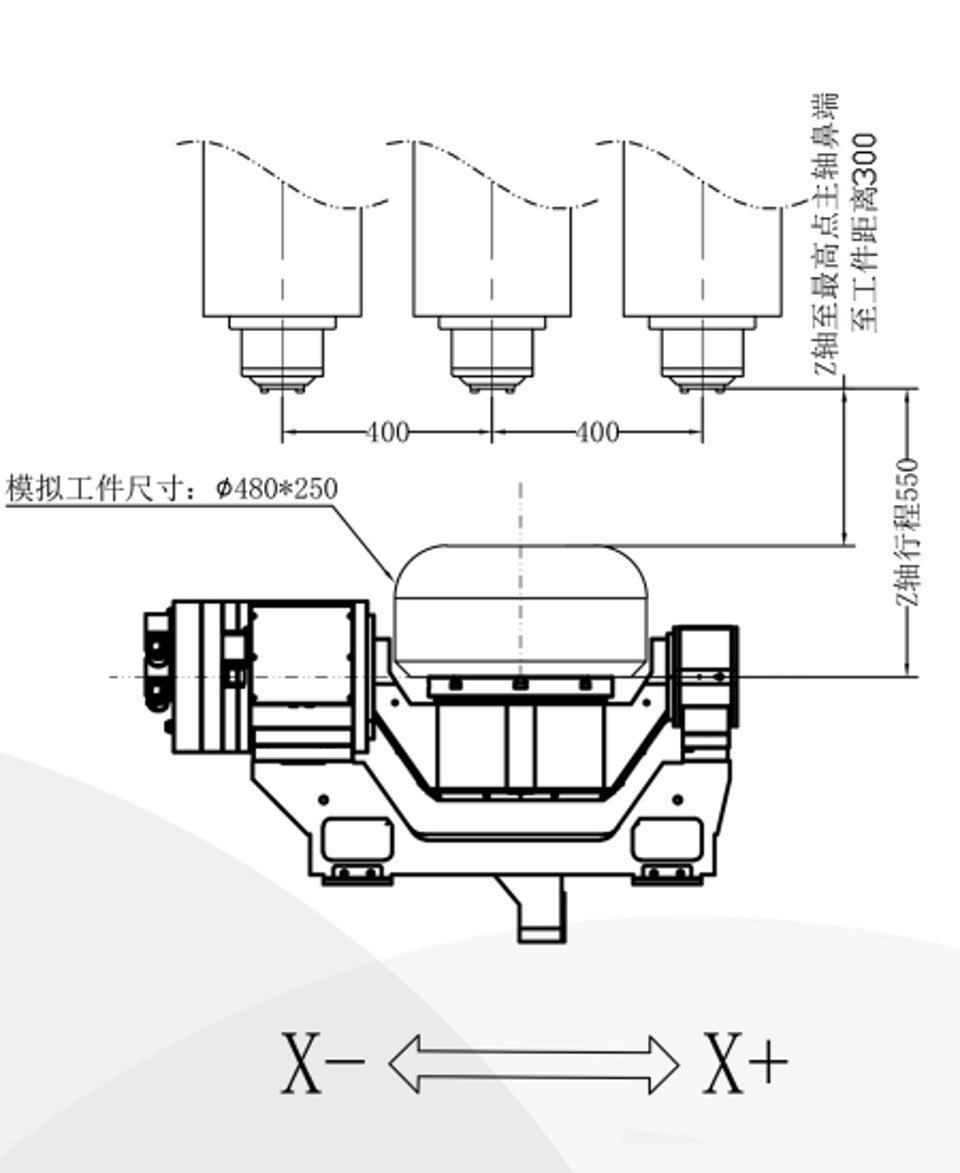

X-axis travel	mm	800

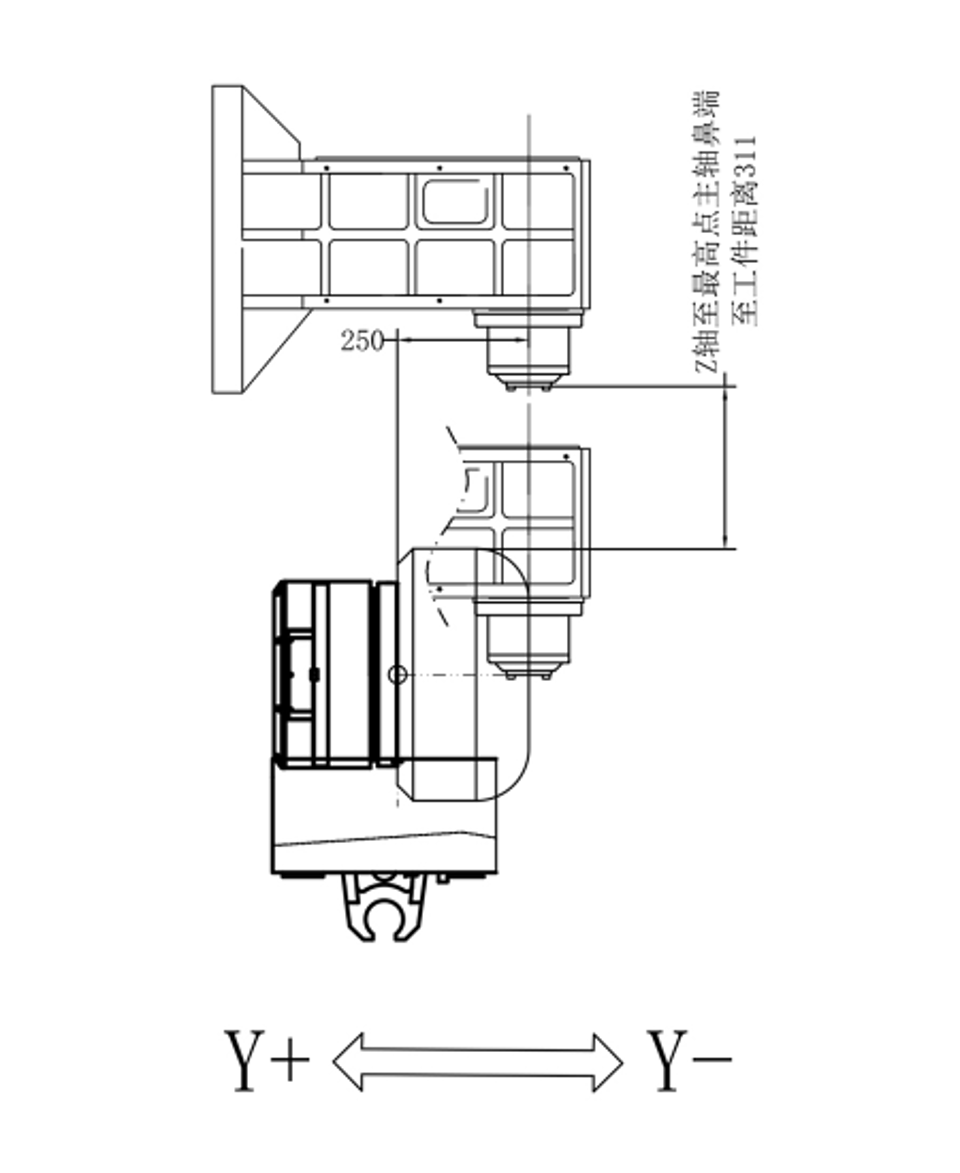

Y-axis travel (A-axis -90° to Y-axis -90°)	mm	220

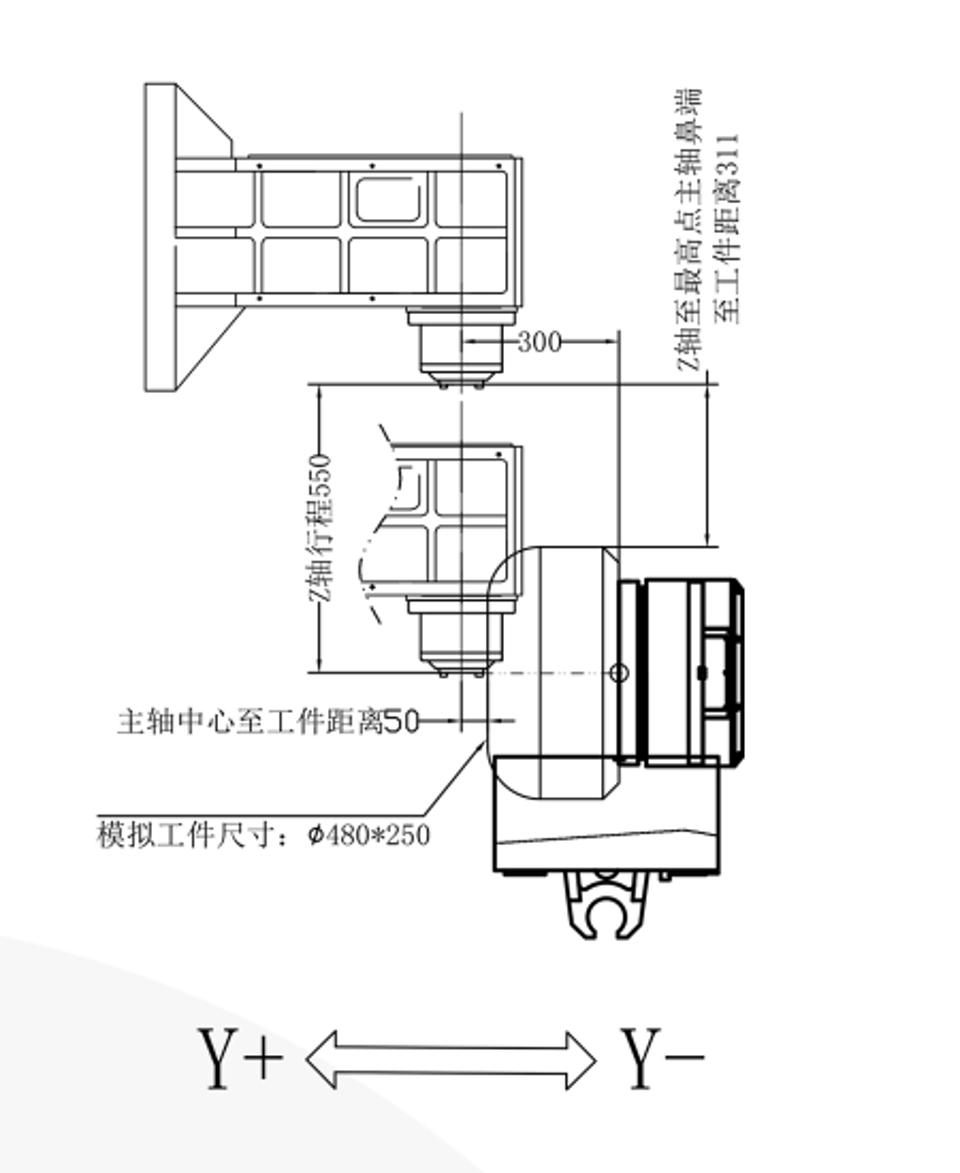

Y-axis travel (A-axis +90° to Y-axis +90°)	mm	330
Z-axis travel	mm	550
Worktable
Worktable size	mm	Φ350
Workbench load capacity (Horizontal/Vertical)	kg	150/120
A/C axis angle range		±110°/360°
A/C axis rated torque	Nm	300/202
A/C axis drive mode		DD direct drive
A/C axis positioning accuracy		±10
A/C axis repeating positioning accuracy		±2
Spindle
Spindle specification		BBT40
Spindle drive		INNA electric spindle
Max. speed of spindle	rpm	15000
Spindle power	kw	7.5/11
Accuracy (VDI3441)
Positioning	mm	Ps0.008
Repeatability	mm	Ps0.006
Motor
X-axis servo motor	kw	3.0
Y-axis servo motor	kw	3.0
Z-axis servo motor	kw	3.0
Rail screw
X-axis rail specification		35 roller
Y-axis rail specification		45 roller
Z-axis rail specification		45 roller
Specification of X-axis ball screw		4012
Specification of Y-axis ball screw		4012
Specification of Z-axis ball screw		4012
Rapid Speed
X/Y/Z axis rapid speed	m/min	36/36/36
Tool magazine
Tool taper		BBT40
Tool capacity	pcs	24T
Maximum tool diameter (diameter of adjacent air knife)	mm	80/150
Maximum tool length	mm	300
Maximum tool weight	kg	8
Basic parameters
Machine footprint	mm	2510*3174
Machine height	mm	2600
Machine weight	kg	5850
Control system		FANUC 0I-MF PLUS(1) 4+1 TCP

Standard proximity and function

1.FANUC 0I-MF PLUS (1) 4+1 Control System	11.Portable Handwheel
2.INNA BBT40-150-15000 rpm Electric Spindle	12.Work Light
3.Five-Axis Turntable	13.Warn light
4.Spindle Cooling System	14.Transformer
5.Spindle blushing	15.water gun
6.Cutting coolant system	16.Air gun
7.Tank and waterbox	17.Rigid tapping
8.Automatic lubrication system	18.Manual Tool Release
9.Telescopic cover of triaxial rail	19.Tool Setter
10.Electrical Cabinet Air Conditioner	20.24T Disc-Type Tool Magazine
