MT500 New Model Sheet Metal

Parameters

Item	Unit	MT500
Travels
Distance from spindle end face to turntable surface	mm	120-570
Maximum rotation diameter of workpiece	mm	Φ490
X-axis travel	mm	550
Y-axis travel	mm	525
Z-axis travel	mm	450
Worktable
Worktable size	mm	Φ350
A/C axis load capacity (any angle)	kg	120
A/C axis angle range		±110/360
A/C Axis Rated Torque	Nm	300/202
A/C axis drive mode		DD Direct Drive
A/C axis Maximum Speed	rpm	218/176
A/C axis Maximum Torque	Nm	550/460
A/C axis Positioning Accuracy		±10
A/C axis Repeating Positioning Accuracy		±2
Spindle
Spindle specification		BBT40
Spindle drive		INNA Built-in Spindle
Max. speed of spindle	rpm	15000
Spindle power	kw	7.5/11
Precision VDI3441
Positioning	mm	P0.006
Repeatability	mm	Ps0.004
Motor
X-axis servo motor	kw	1.8
Y-axis servo motor	kw	1.8
Z-axis servo motor	kw	3.0
Rail Screw
X-axis rail specification		45 Roller
Y-axis rail specification		45 Roller
Z-axis rail specification		35 Roller
Specification of X-axis ball screw		4016
Specification of Y-axis ball screw		4016
Specification of Z-axis ball screw		4016
Rapid Speed
X/Y/Z axis rapid speed	m/min	36/36/36
Tool Magazine
Tool taper	-	BBT40
Tool Capacity	pcs	24T
Maximum tool diameter (diameter of adjacent air knife)	mm	80/150
Maximum tool length	mm	300
Maximum tool weight	kg	8
Basic Parameters
Approximate machine size	mm	363435103483
Approximate machine weight	kg	5500
Control system		FANUC 0i-MF Plus(1)4+1

Standard proximity and function

1.FANUC 0I-MF PLUS (1) 4+1 Control System	11.Portable Handwheel
2.INNA BBT40-150-15000 rpm Electric Spindle	12.Work Light
3.Five-Axis Turntable	13.Warn light
4.Spindle Cooling System	14.Transformer
5.Spindle blushing	15.water gun
6.Cutting coolant system	16.Air gun
7.Tank and waterbox	17.Rigid tapping
8.Automatic lubrication system	18.Manual Tool Release
9.Telescopic cover of triaxial rail	19.Tool Setter
10.Electrical Cabinet Air Conditioner	20.24T Disc-Type Tool Magazine

Optional Accessories and Functions

1.Chain-type chip conveyor

2.INNA HSK A63-175-16000 rpm Electric Spindle

3.Domestic control system is optional

· Syntec 220MA-5 PLUS Control System

· Huazhong HNC-848DiM-15F Control System

Features of the INNA W-150 Series Spindle

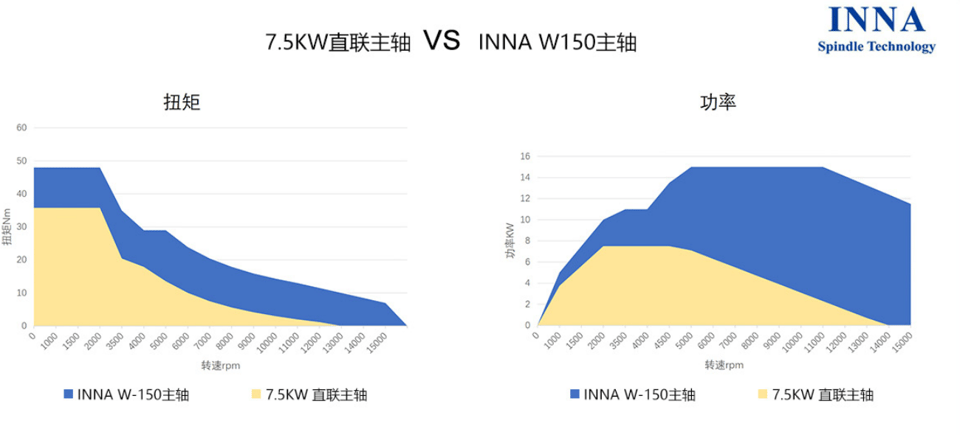

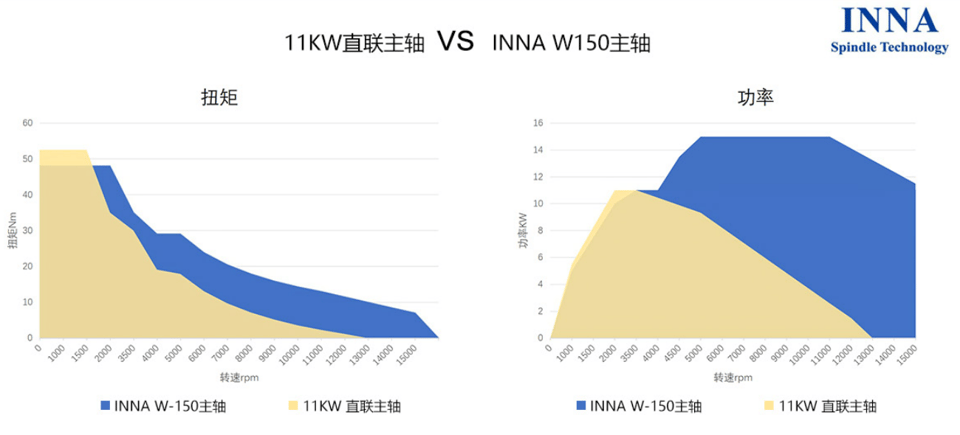

1. Low-speed torque is 30% higher than the direct drive spindle, high-speed torque is more than doubled, and outperforms the 7.5KW direct drive spindle across all speed ranges	1. Low-speed torque is lower than the 11KW direct drive spindle, but it features a wider rated torque range. Starting from 2000rpm, torque attenuation is significantly lower. From 5000rpm onwards, high-speed torque is doubled compared to the 11KW direct drive spindle
2. High-speed power increases exponentially compared to the direct drive spindle, delivering over 3x higher efficiency in non-ferrous metal machining, with faster speed and superior surface finish	2. High-speed power is essentially consistent with the 11KW direct drive spindle below 4000rpm. After 4000rpm, power output increases, delivering higher machining efficiency and better part surface finish

Fringe pattern

MT500 Travel: X:550 Y:550 Z:450

A-Axis 0° (Workpiece Φ490*300) Machining Simulation Diagram

MT500 Travel: X:550 Y:550 Z:450

A-Axis -110° (Workpiece Φ490*300) Machining Simulation Diagram

MT500 Travel: X:550 Y:550 Z:450

A-Axis 90° (Workpiece Φ490*200) Machining Simulation Diagram
